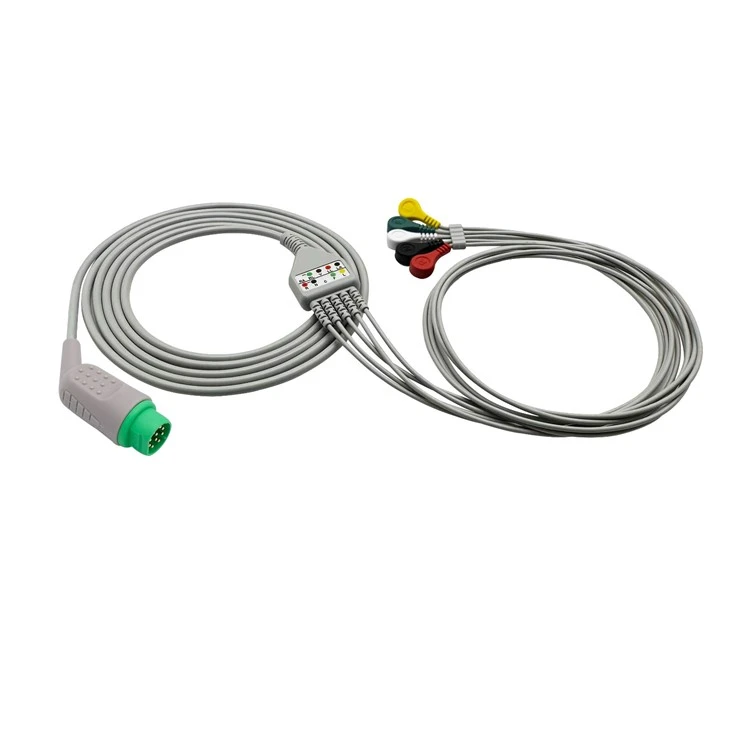

Siemens Compatible 10-Pin 5-Lead ECG Trunk Cable

Application

This ECG trunk cable is used to connect patient monitors with ECG lead wires in clinical environments. It supports a standard 5-lead configuration, including RA (Right Arm), LA (Left Arm), RL (Right Leg), LL (Left Leg), and V (Chest). It is widely applied in hospitals, intensive care units (ICU), operating rooms, emergency departments, and general patient monitoring scenarios where continuous cardiac observation is required.

Key Features

• Siemens 10-pin compatible connector for stable device connection
• Supports standard 5-lead ECG monitoring configuration
• High-quality signal transmission with low noise interference
• Strong shielding design to reduce electromagnetic interference (EMI)
• Flexible and durable cable structure for long-term clinical use

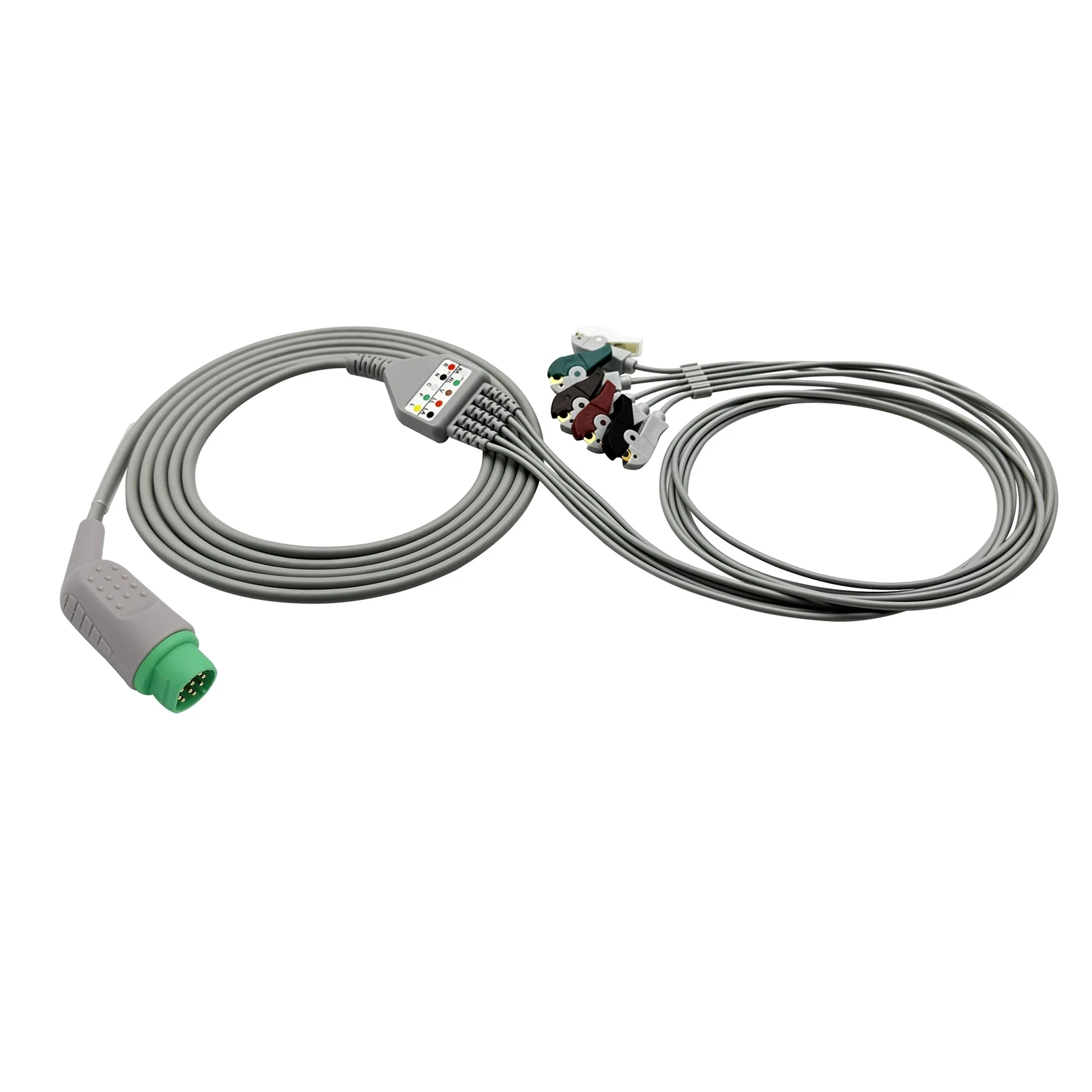

• Compatible with snap or clip type lead wires (optional configurations available)

Material & Build Quality

The cable is manufactured using medical-grade TPU material, offering excellent flexibility, durability, and resistance to repeated bending. The connector is precision-molded to ensure a secure and stable fit with compatible Siemens monitoring systems. Internal conductors are designed for high conductivity and stable signal transmission, ensuring accurate ECG waveform output even in high-demand environments.

Performance Advantages

This ECG trunk cable is engineered to maintain high signal integrity during continuous monitoring. Its advanced shielding structure effectively reduces noise and interference caused by surrounding electronic equipment. This ensures clinicians receive clear and accurate ECG readings, supporting reliable diagnosis and patient care decisions.

Safety & Reliability

Each cable undergoes strict quality control testing before delivery, including electrical performance testing, continuity checks, and mechanical durability inspection. The product is designed to meet medical-grade safety requirements for clinical use, ensuring consistent performance in critical care environments.

Compatibility

This cable is designed for Siemens patient monitors using a 10-pin ECG interface. It can serve as a direct replacement for compatible OEM trunk cables and works with standard 5-lead ECG patient monitoring setups. It is suitable for use with most standard ECG lead wire systems depending on connector type selection.
