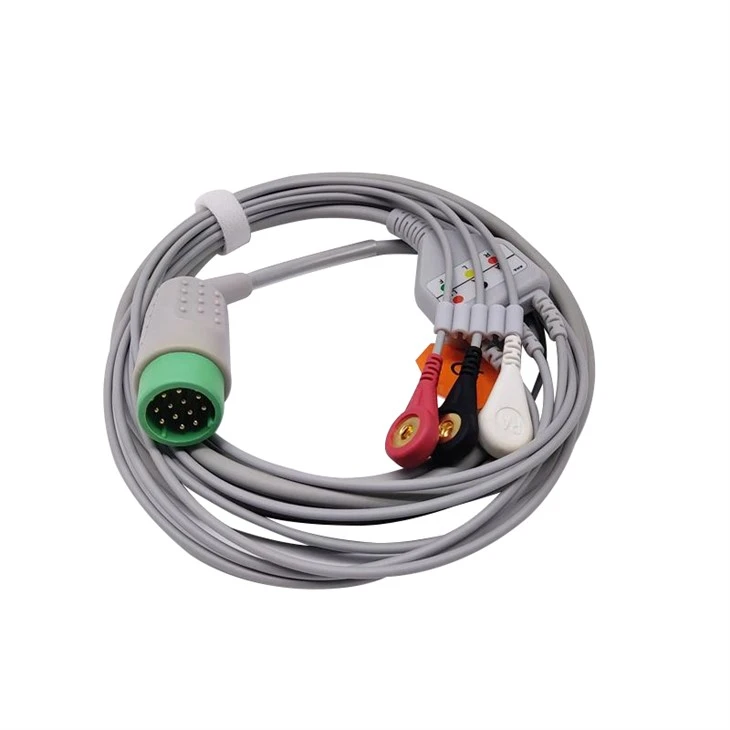

Medtronic lifepak Compatible 12-Pin 3-Lead Angled Snap ECG Cable (IEC + AHA)

Key Features and Technical Specifications

• Compatibility: Specifically designed for Medtronic Physio-Control LifePak 11, 12, 15, 20, and related defibrillator/monitor systems. Supports both IEC and AHA color coding standards.

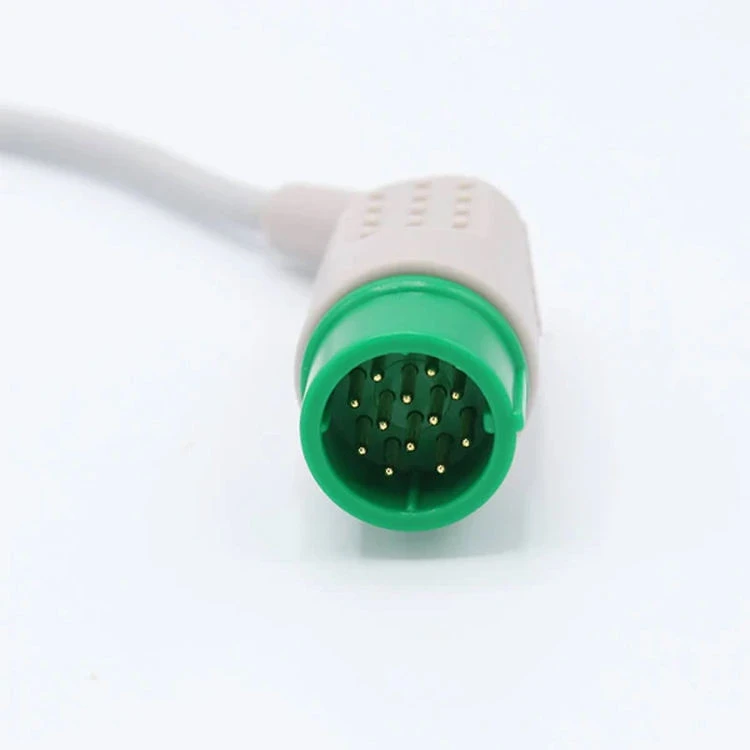

• Connector Design: 12-pin round keyed monitor connector with angled snap terminals for reliable electrode connection and reduced strain on leads.
• Lead Configuration: 3-lead system optimized for continuous basic ECG monitoring and emergency cardiac assessment.
• Reusable Construction: Premium TPU (thermoplastic polyurethane) jacket material that is latex-free, biocompatible, and highly resistant to disinfectants and daily wear. Built for hundreds of use and cleaning cycles.
• Length Options: Total trunk cable length approximately 3.4 meters (11 ft), with individual lead wires around 90 cm (35 in) for optimal patient reach and reduced tangling.
• Shielding and Performance: Advanced shielding technology minimizes electromagnetic interference (EMI), delivering high-fidelity signals even in electrically noisy environments such as ambulances or operating theaters.
• Patient Safety: Compliant with international standards including ISO 13485, CE, FDA-equivalent clearances, and AAMI EC53 guidelines. Hypoallergenic materials reduce the risk of skin irritation.

Superior Durability and Cost Efficiency

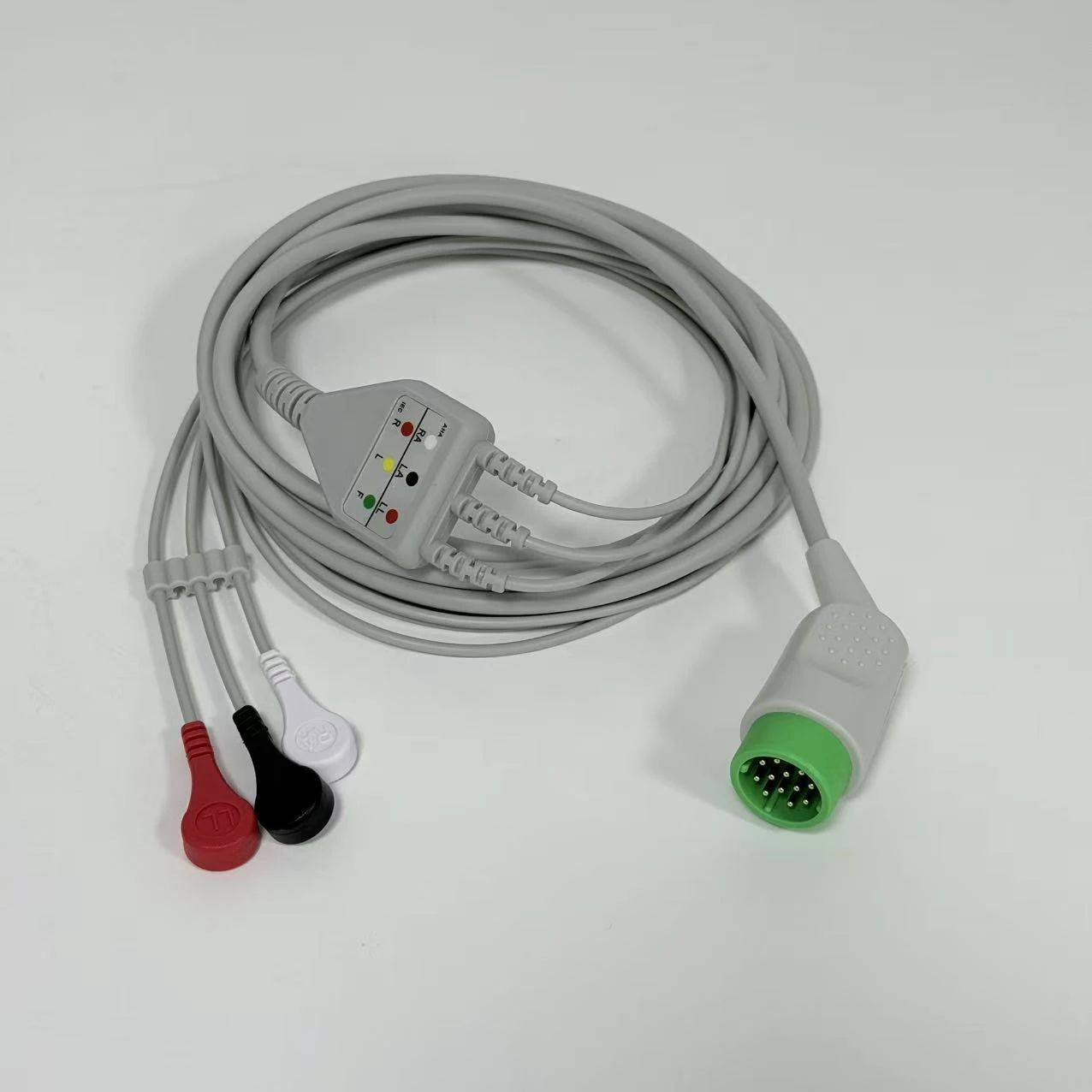

This reusable angled snap ECG cable provides significant long-term cost savings compared to single-use disposables while maintaining OEM-level performance. The rugged TPU outer jacket resists kinking, abrasion, and tearing, ensuring consistent reliability through repeated clinical use. Color-coded leads (configurable for AHA: white/black/red or IEC: red/yellow/green) enable rapid, error-free setup by clinical teams under pressure.

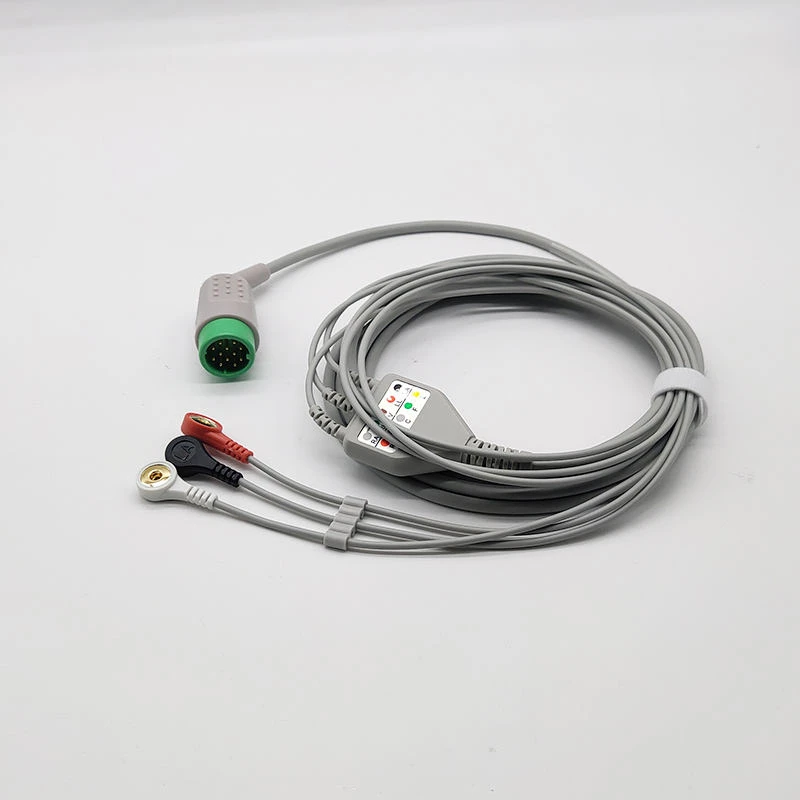

The lightweight yet robust design improves patient mobility and comfort during extended monitoring or transport. Angled snap connectors offer a firm grip on electrodes without excessive pressure, minimizing detachment risks from patient movement while remaining quick to apply and remove.

Clinical Applications

1. The Medtronic Compatible 12-Pin 3-Lead Angled Snap ECG Cable (IEC + AHA) excels in demanding scenarios:

2. Emergency and pre-hospital transport monitoring with LifePak defibrillators.
3. Continuous ECG surveillance in ICUs, CCUs, and general wards.
4. Defibrillation and resuscitation support where reliable signal quality is critical.
5. Adult and pediatric applications (with appropriate electrode selection).

Clinicians benefit from clear, artifact-free waveforms that support timely diagnosis of arrhythmias, ischemia, and other cardiac conditions. Its reusable design also supports sustainability initiatives by reducing medical waste.

Ease of Use and Maintenance

Installation is simple and intuitive: plug the 12-pin connector into the Medtronic monitor or LifePak device, attach the angled snaps to pre-applied electrodes on the patient's chest, and select the desired lead view. The cable integrates effortlessly into standard emergency and critical care workflows without requiring adapters in most cases.

Maintenance involves wiping the cable with standard hospital-grade disinfectants such as isopropyl alcohol or quaternary ammonium solutions. Avoid full immersion or autoclaving unless manufacturer-specified. Routine visual inspection for wear helps maintain peak performance and patient safety throughout its extended service life.

Quality Assurance and Reliability

Produced under stringent quality control, this cable undergoes comprehensive testing for electrical safety, mechanical durability, signal integrity, and biocompatibility. It is engineered to perform consistently in the most challenging clinical environments, serving as a trusted, high-value alternative to original Medtronic parts.

By selecting the Medtronic Compatible 12-Pin 3-Lead Angled Snap ECG Cable (IEC + AHA), healthcare facilities gain professional-grade monitoring performance without the higher cost of OEM components. This optimal combination of reliability, versatility, and affordability makes it an excellent choice for institutions prioritizing both clinical excellence and operational efficiency.

Conclusion

In summary, the Medtronic Compatible 12-Pin 3-Lead Angled Snap ECG Cable (IEC + AHA) is a versatile, durable, and economical solution for high-stakes ECG monitoring. Its thoughtful engineering, premium materials, and broad compatibility ensure it meets the rigorous demands of modern emergency and critical care. From ambulance transport to hospital bedside monitoring, this cable enhances diagnostic accuracy, improves workflow efficiency, and contributes to better patient outcomes while delivering substantial cost savings.
