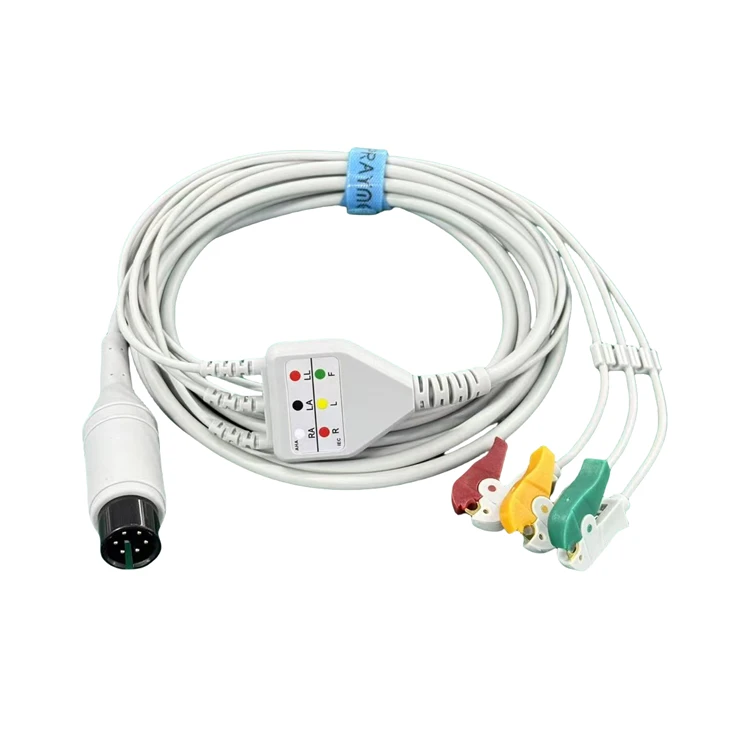

Mindray 6-Pin 3-Lead ECG Cable, AHA & IEC Snap / Grabber Clips

Product Overview

This professional 3-lead integrated ECG cable is designed to connect Mindray legacy monitors and ECG electrodes directly. It is equipped with a sturdy round keyed 6-pin connector on the monitor side, featuring anti-loosening and anti-reversal functions. The 3-lead design covers standard limb leads (RA, LA, LL) with built-in RL reference electrode, supporting basic ECG waveform collection, heart rate tracking and arrhythmia screening. This cable is applicable to adult, pediatric, neonatal and animal patients, and serves as an ideal cost-effective replacement for original OEM cables.

Key Features and Technical Specifications

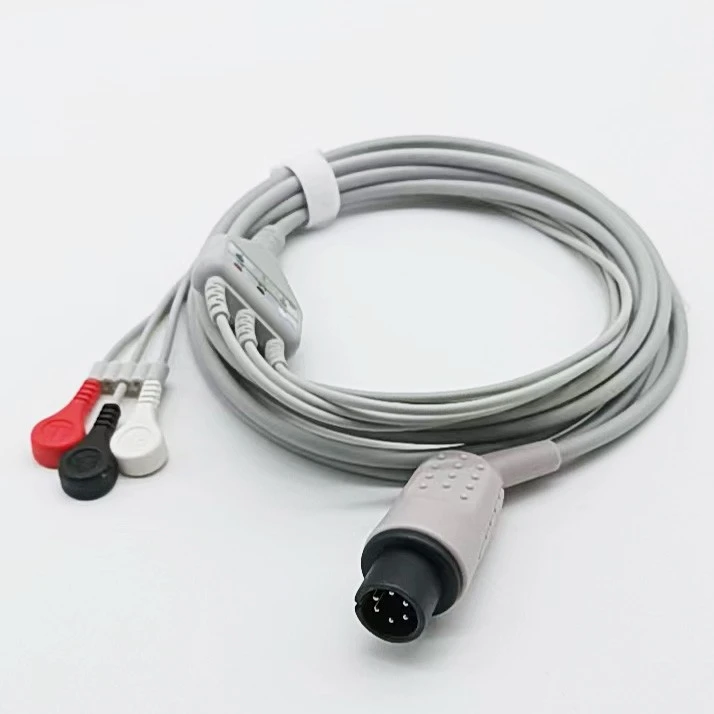

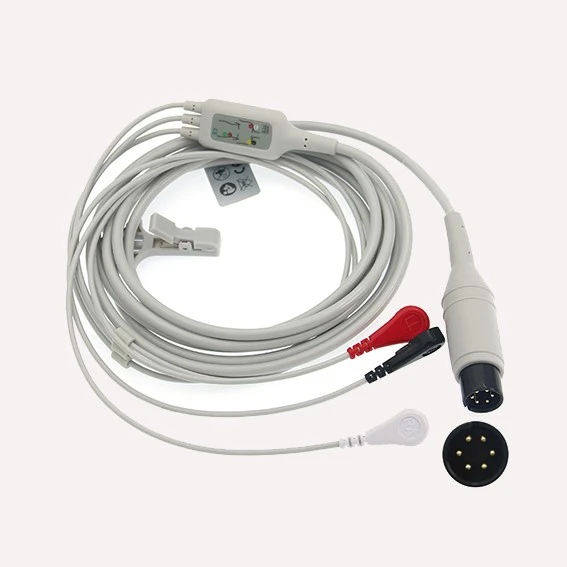

• Connector Design: Precision round keyed 6-pin connector for Mindray monitors, ensuring firm connection and preventing accidental disconnection.
• Lead Configuration: Standard 3-Lead (RA, LA, LL) with built-in RL drive for basic cardiac monitoring.
• Color Code: Dual options of AHA (American Standard) and IEC (European Standard) to adapt to global medical standards.

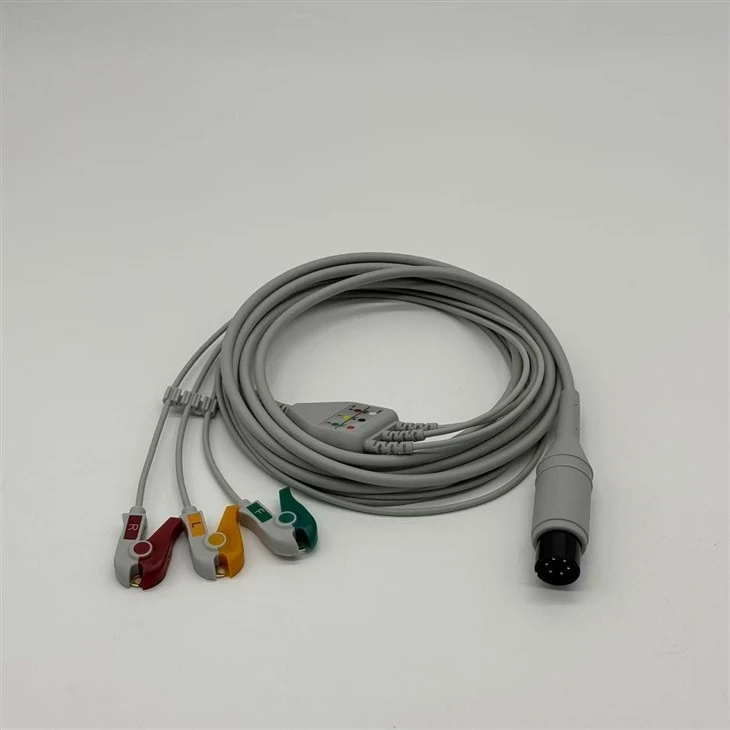

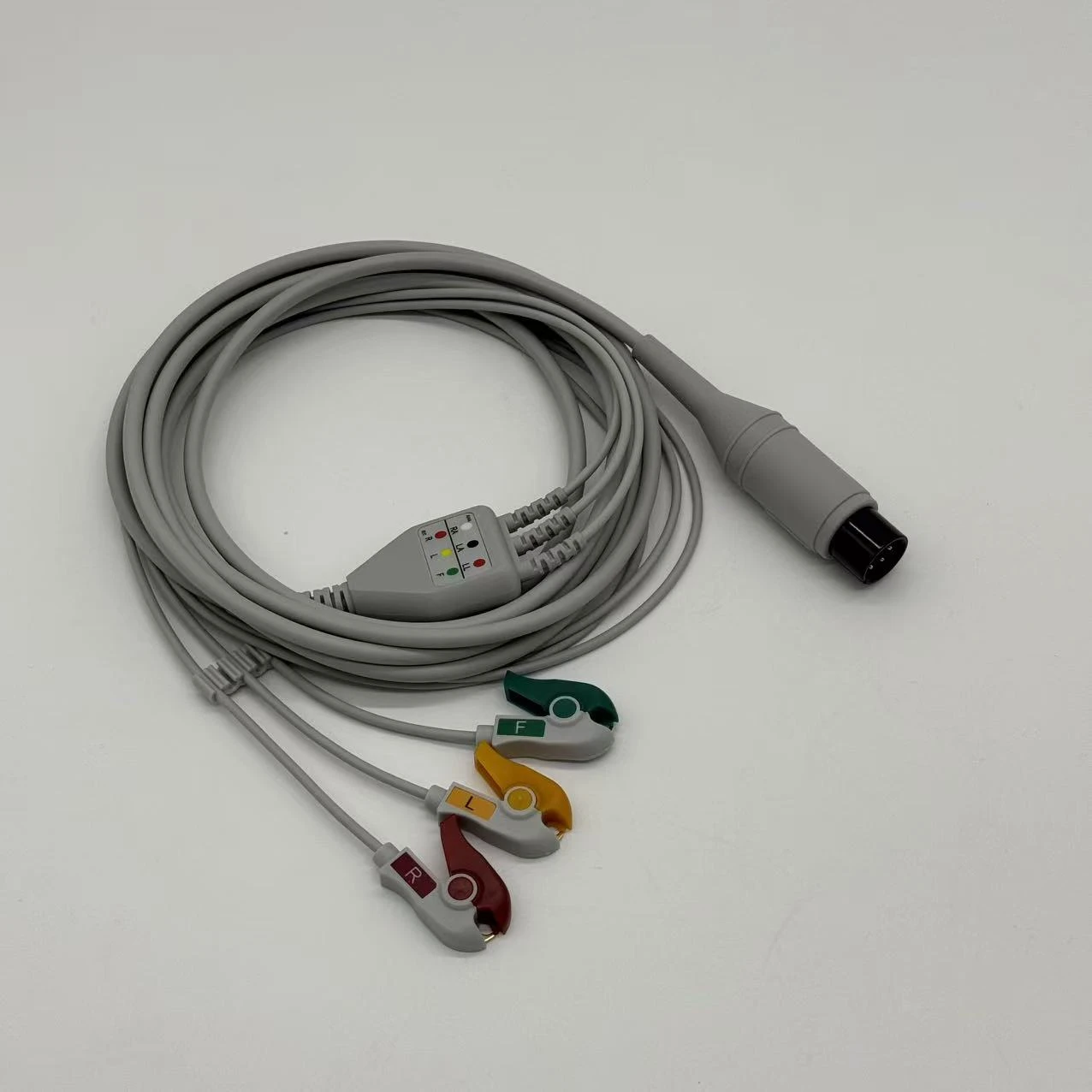

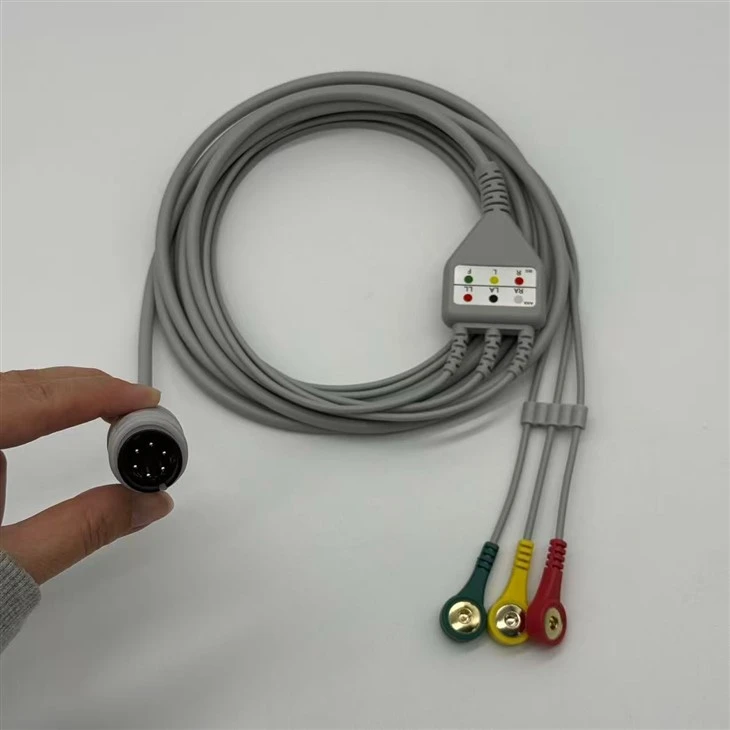

• Terminal Options: 4.0mm standard snap buttons for disposable electrodes; multi-spec grabber clips including adult clips, neonatal clips and veterinary animal clips.
• Cable Length: Standard length 2.5 meters, 3.0 meters customized length is available.
• Material Excellence: Medical-grade latex-free TPU jacket, excellent flexibility, kink resistance and corrosion resistance.
• Signal Performance: Full shielded structure effectively filters power frequency interference, presenting low-noise and high-fidelity ECG waveforms.
• Electrical Safety: 4000VAC defibrillation isolation protection, fully compliant with medical electrical safety requirements.
• Usability: Reusable, easy to clean and disinfect with common hospital disinfectants, suitable for long-term clinical use.

Superior Compatibility

Why Choose Our 3-Lead ECG Cable?

1. Clinical Reliability: Advanced shielding technology reduces signal artifacts, guarantees stable waveforms and supports accurate heart rate and rhythm analysis.
2. Cost Efficiency: Matches the performance of original cables at a more competitive price, helping medical facilities and distributors cut procurement costs.
3. Patient Safety & Comfort: Latex-free materials eliminate allergic risks; flexible cable and diversified terminals fit patients of all ages and animals.
4. Durability: Reinforced connectors and wear-resistant wire body can withstand frequent bending, pulling and repeated disinfection in busy clinical environments.

Ideal Applications

• General ward routine monitoring
• Emergency department and outpatient clinic diagnosis
• Pediatric and neonatal ward care
• Veterinary animal ECG examination
• Medical equipment rental and equipment maintenance

Simple Installation and Maintenance

1. Insert the 6-pin round connector into the matching port of Mindray monitor until it clicks and locks.
2. Select snap buttons or grabber clips according to usage scenarios, and attach them to corresponding body positions as standard lead placement.
3. Turn on the monitor and check to confirm clear and stable ECG waveforms.
4. After use, wipe the cable and terminals with hospital-grade disinfectants for daily maintenance to extend service life.
