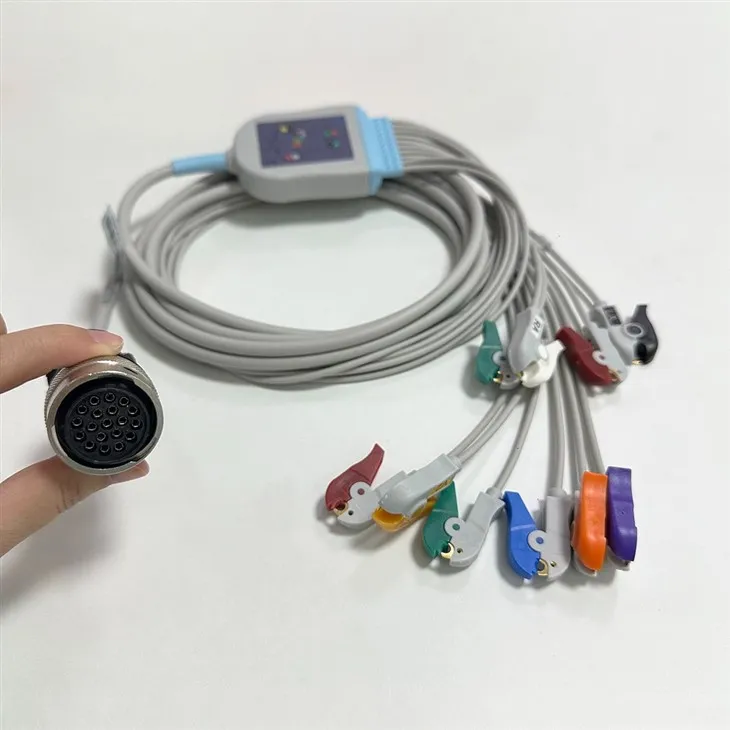

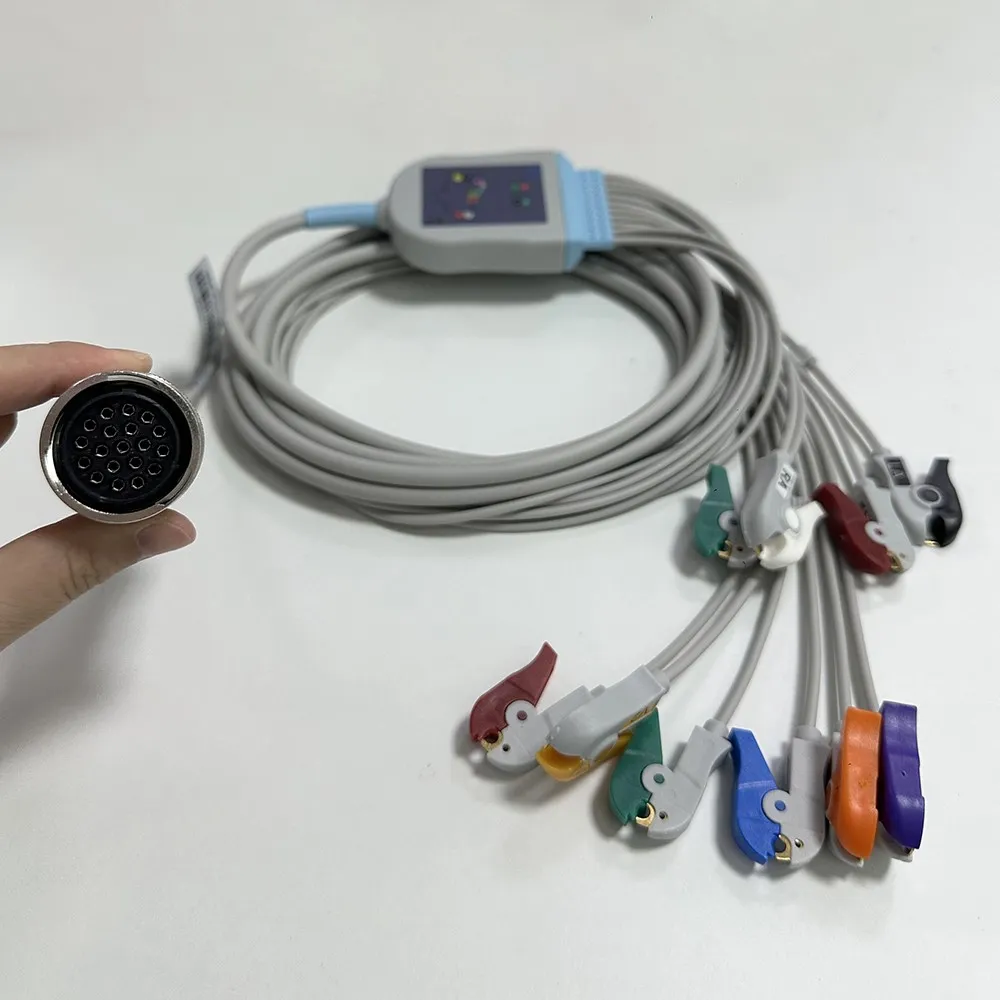

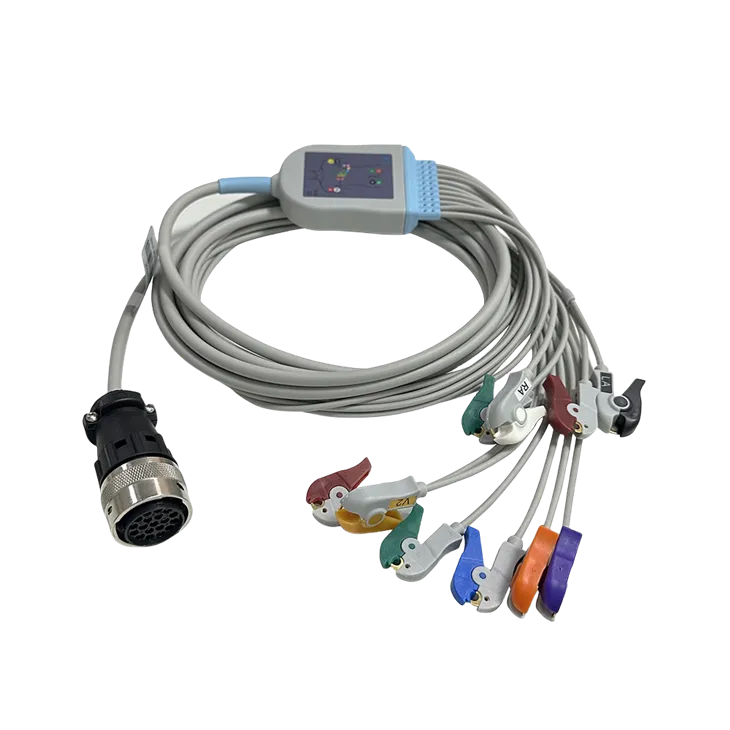

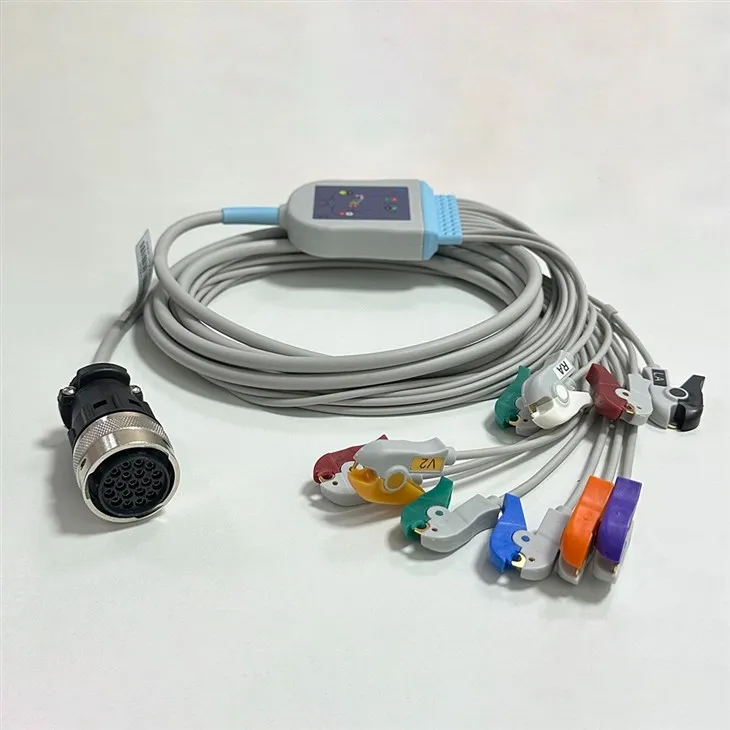

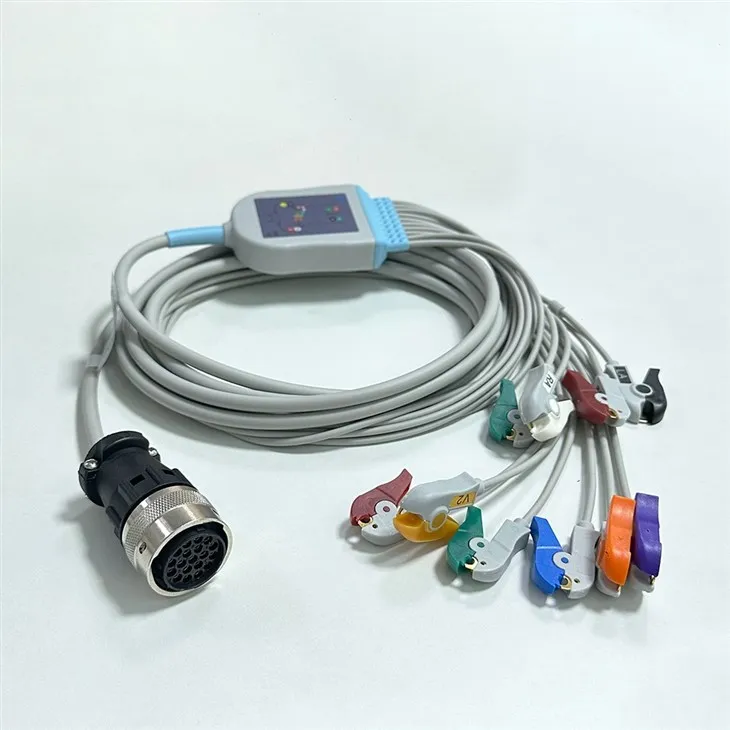

Quinton Compatible 19-Pin 10-Lead ECG/EKG Cable

Superior Compatibility and Design

This cable features a round 19-pin female connector on the distal end, specifically designed for perfect compatibility with Quinton Q-Stress, Q4500, Q750, Q710, and similar Mortara/Quinton ECG systems. It serves as a reliable direct-connect solution, eliminating the need for additional adapters and reducing potential signal interference points.

The proximal end offers versatile patient-side connectors, typically available in pinch/grabber (clip), banana, or snap configurations to accommodate various electrode types and clinical preferences. Color-coded leadwires (AHA or IEC standards) facilitate quick, error-free placement, enhancing workflow efficiency during time-sensitive procedures.

Key specifications include:

• Lead Configuration: 10 leads for comprehensive 12-lead ECG recordings.
• Total Cable Length: Approximately 11 ft (3.4m) to 19 ft (5.8m), providing ample reach in exam rooms or stress test setups.
• Trunk Cable: Durable gray TPU-jacketed main cable with a 3.00 mm diameter for flexibility and strength.
• Latex-Free Construction: Ensures patient safety and reduces allergy risks.
• High-Quality Shielding: Advanced shielding minimizes electromagnetic interference (EMI) and motion artifacts, delivering clean, diagnostic-quality waveforms.

Built for Demanding Clinical Environments

In the fast-paced world of cardiology, equipment must withstand rigorous daily use. Our Quinton-compatible 19-pin cable is manufactured with premium medical-grade materials. The robust TPU outer jacket resists abrasion, kinking, and chemical disinfectants commonly used in healthcare settings. Individual leadwires are reinforced for repeated flexing, while the 19-pin connector is precision-molded for secure, low-resistance connections that maintain signal integrity over thousands of uses.

This cable excels in stress testing applications, where patient movement is constant. Its design incorporates defibrillation protection and high-voltage withstand capabilities, meeting stringent safety standards for Type CF applied parts. Healthcare providers can confidently use it during exercise stress tests, resting ECGs, and Holter monitoring setups.

Exceptional Signal Quality and Patient Comfort

Accurate ECG readings depend on stable electrode connections and noise-free transmission. This 10-lead cable features:

• Low-resistance conductors for superior signal conduction.
• Optimized lead lengths: Limb leads and precordial (chest) leads are proportioned for anatomical fit and reduced tangling.
• Secure clip or snap mechanisms that provide strong yet gentle electrode attachment, improving patient comfort and reducing artifact from loose connections.

The result? Crisp, high-fidelity ECG tracings that support confident clinical decisions, from detecting arrhythmias to evaluating ischemic changes during stress protocols.

Why Choose Our Quinton Compatible Cable?

Cost-Effective Alternative Without Compromising Quality Original equipment manufacturer (OEM) cables can be expensive and have long lead times. Our compatible version offers identical or superior performance at a more accessible price point, helping facilities manage budgets while maintaining the highest standards of care.

Rigorous Quality Assurance Each cable undergoes comprehensive testing for electrical continuity, insulation resistance, and connector integrity. We prioritize biocompatibility and compliance with international medical device standards, including CE marking where applicable, ensuring global usability.

Versatility Across Applications:

• Exercise Stress Testing Systems
• Diagnostic Resting ECG
• Hospital and Clinic Monitoring
• Telemetry and Rehabilitation Settings

Technical Advantages in Detail

The 19-pin interface provides dedicated pins for each lead plus shielding and reference grounds, enabling simultaneous acquisition of all 10 leads with minimal crosstalk. This is critical for generating accurate 12-lead interpretations used in ischemia detection, conduction abnormality analysis, and pre-surgical evaluations.

The cable's lightweight yet durable construction reduces strain on both equipment ports and clinical staff. Its coiled or straight trunk options (depending on model variant) enhance manageability in confined spaces.

Enhanced Safety Features

• Defibrillator Protection: Built-in resistors protect the monitoring system and patient during emergency defibrillation.
• Patient Isolation: Meets IEC 60601-1 safety requirements for medical electrical equipment.
• Easy Cleaning: Wipeable surfaces compatible with common hospital disinfectants like isopropyl alcohol and quaternary ammonium compounds.
• Non-Latex Materials: Ideal for sensitive patient populations.

Ideal for Bulk Procurement and Facility-Wide Standardization

Hospitals and diagnostic networks benefit from standardizing on this cable across multiple Quinton/Mortara systems. Consistent performance reduces training time for technicians and minimizes troubleshooting during critical procedures. Its availability in various connector configurations (grabber, snap, banana) allows customization to match existing electrode inventories.

Packaging and Support

Each cable ships individually packaged in a sterile or protective medical-grade pouch, complete with usage instructions and compatibility verification. We offer comprehensive technical support, warranty coverage (typically 6-12 months against manufacturing defects), and bulk ordering options for large facilities.

Real-World Performance

Clinicians worldwide trust compatible Quinton cables like this for their reliability during high-volume stress labs. The combination of mechanical durability and electrical excellence translates to fewer replacements, lower downtime, and improved patient throughput.

Specifications Summary

• Product Name: Quinton Compatible 19-Pin 10-Lead ECG/EKG Cable

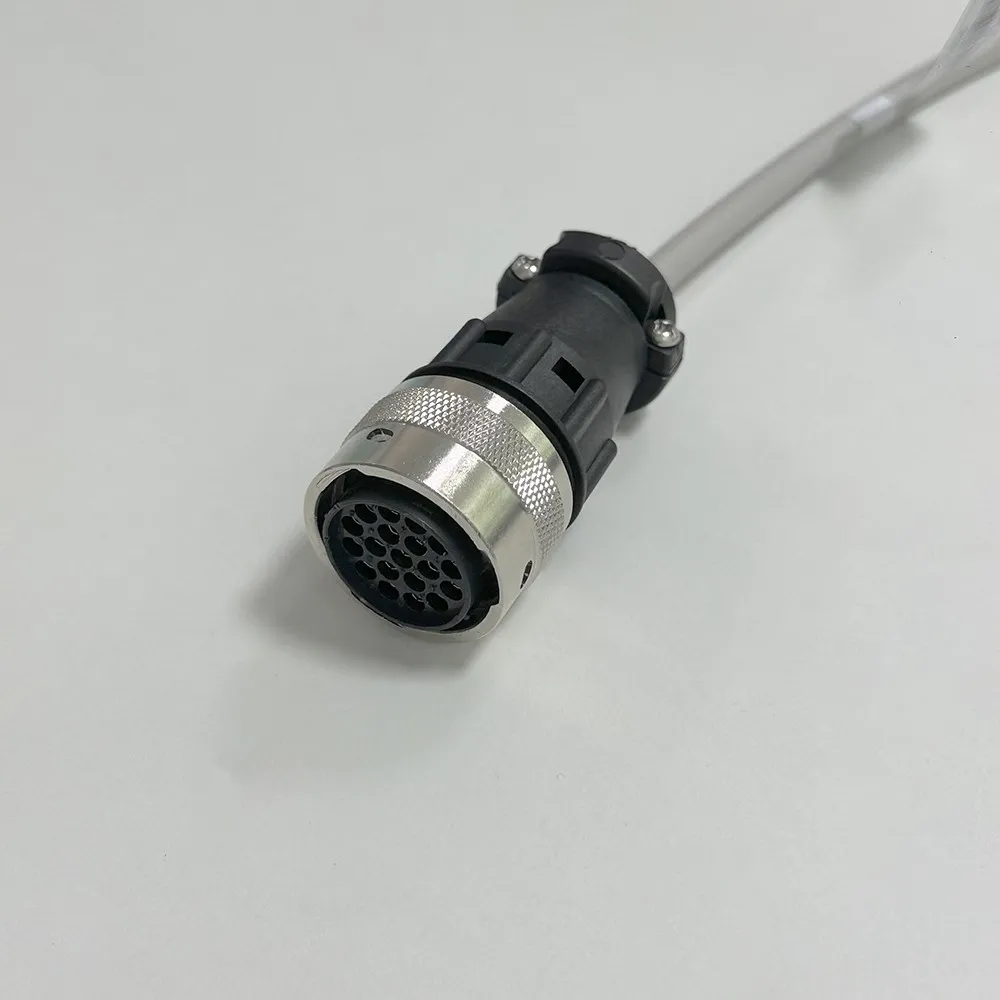

• Connector (Machine End): Round 19-pin female
• Leads: 10 (AHA/IEC color coding available)
• Patient End Options: Pinch/Grabber, Snap, Banana
• Length: 11 ft (standard) / 19 ft options
• Jacket Material: High-flex TPU, medical grade
• Color: Gray trunk with multicolored leadwires
• Latex: No
• Compatibility: Quinton Q-Stress, Q4500, Q750 series, Mortara equivalents, and select other systems (verify specific model)
• Standards: Meets AAMI, IEC, and relevant defibrillation protection guidelines
