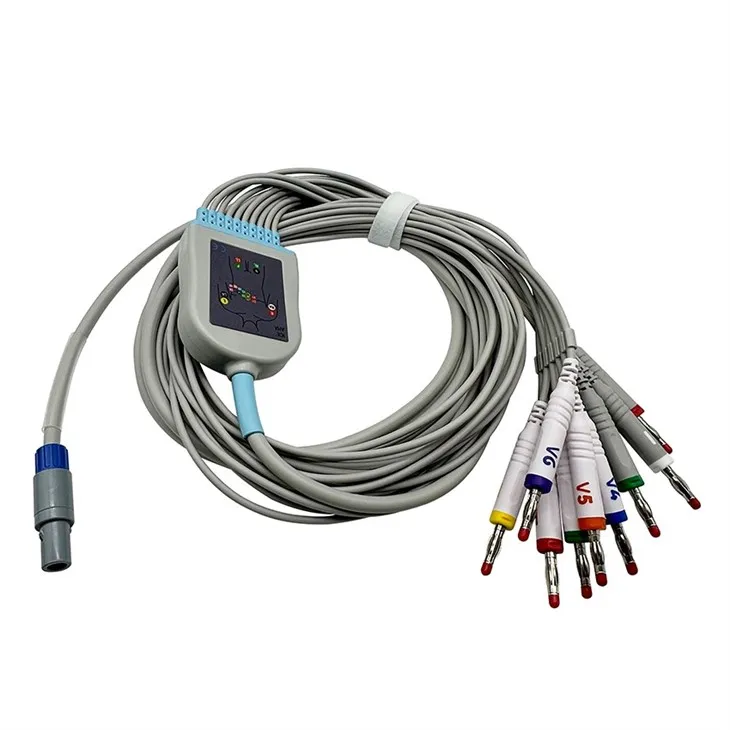

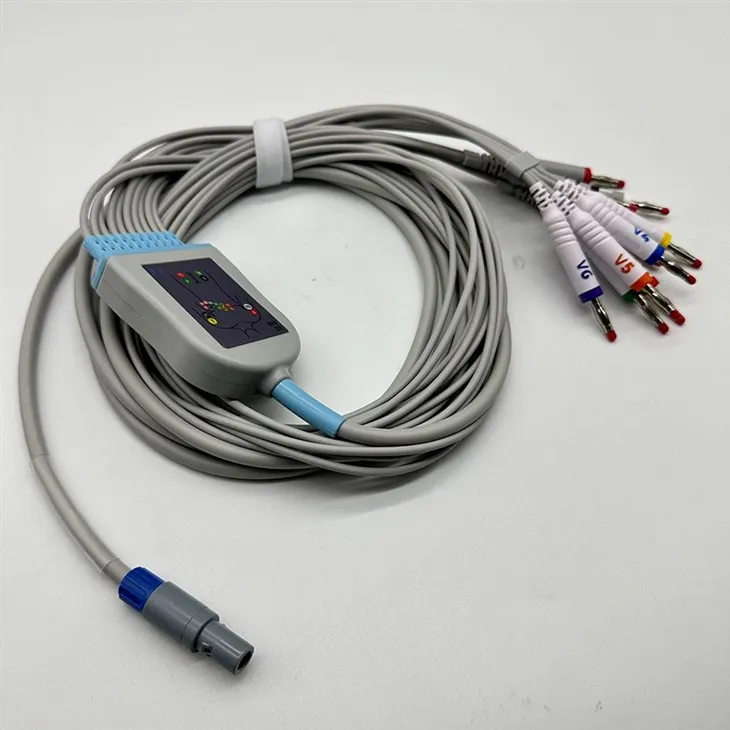

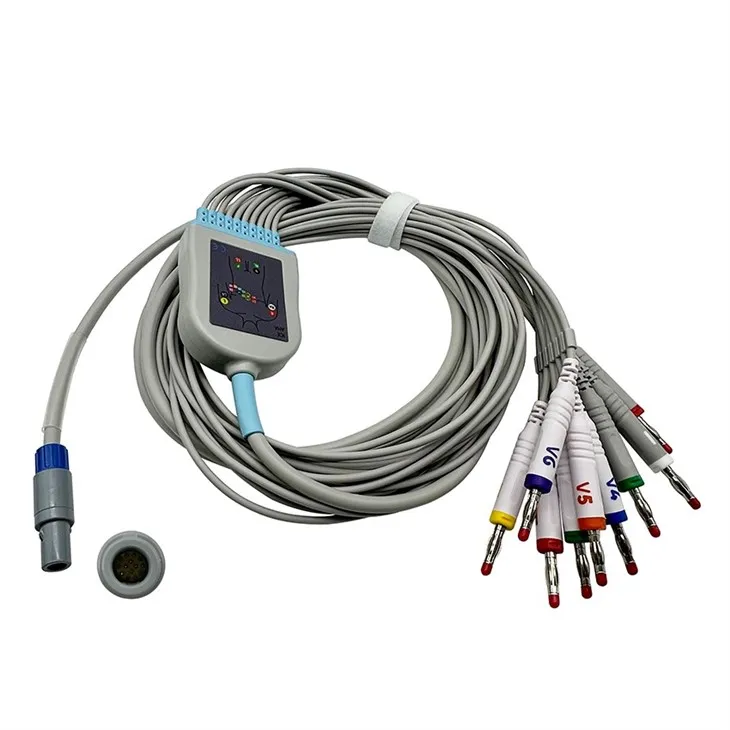

Welch Allyn 14-Pin 10-Lead ECG/EKG Cable

Key Features & Specifications

• Machine End Connector: Durable 14-pin connector with secure locking mechanism for stable, reliable attachment and fast plug-and-play operation.
• Leads: Full 10-lead configuration with individual electrode wires for comprehensive diagnostic ECG acquisition.
• Patient End Options: Versatile selections including 4.0mm Banana plugs (most popular), Grabber/Pinch clips, Snap buttons, or other styles to accommodate different electrode types and clinical preferences.
• Color Coding: Available in AHA (American Heart Association) or IEC (International) standards for quick, accurate, and error-free electrode placement.
• Cable Length: Total length typically 2.5–3.3 meters (8–11 ft). Limb leads approximately 1.2 meters, chest leads 0.75–0.9 meters, providing ideal reach for resting ECG procedures.
• Material & Construction: High-grade medical TPU jacket that is latex-free, highly flexible, durable, and resistant to kinking or daily wear. Double shielding on all conductors significantly reduces electromagnetic interference, muscle artifacts, baseline wander, and other noise for exceptionally clean waveforms.
• Electrical Performance: Defibrillator-proof with built-in protection resistors (commonly 10KΩ variants). Superior conductivity, low impedance, and high-fidelity signal transmission. Fully compliant with AAMI EC53, IEC 60601-1, and other international medical safety and performance standards.
• Patient Compatibility: Suitable for adult and pediatric patients when used with appropriate electrodes.

Wide Compatibility

This 14-pin cable is fully compatible with Welch Allyn CardioPerfect PRO recorders (SE-PRO-600, CP series), PCR 100 resting ECG systems, and related models. It serves as an excellent drop-in replacement for original Welch Allyn patient cables (such as RE-PC-AHA-BAN and similar part numbers). Always confirm your exact device model and software version to ensure optimal performance.

Product Benefits

• Exceptional Signal Quality: Advanced double-shielding technology ensures minimal artifacts, supporting confident clinical interpretation and reducing the need for repeat examinations.
• Robust Durability: Flexible yet tough TPU construction withstands frequent handling, cleaning, and disinfection in high-volume clinical environments while remaining lightweight and easy to manage.
• Significant Cost Savings: Premium compatible alternative to OEM cables, delivering outstanding reliability and performance at a more affordable price point.
• Global Certifications: FDA, CE, ISO 13485 certified, RoHS compliant – fully meeting stringent international regulatory requirements for medical devices.
• Practical Design: Clearly marked leads and color-coded wires accelerate setup time and minimize operator errors for busy healthcare professionals.

Applications

Perfectly suited for routine resting 12-lead diagnostic ECGs, cardiology consultations, preoperative assessments, emergency cardiac evaluations, sports medicine screenings, and general health check-ups. It integrates seamlessly with Welch Allyn CardioPerfect Workstation software for efficient data acquisition, storage, and automated interpretation.

Package Includes: 1 × Welch Allyn 14-Pin 10-Lead ECG Cable. Please specify the desired patient end type (Banana/Grabber/Snap) and color coding standard (AHA/IEC) when placing your order.

Warranty: 6–12 months depending on usage conditions.

This Welch Allyn 14-pin 10-lead cable offers the perfect combination of advanced engineering, proven reliability, broad compatibility, and exceptional value. It is a trusted solution for medical professionals who require high-performance ECG accessories in demanding healthcare environments. For bulk orders, custom lengths/configurations, or assistance verifying compatibility with your specific Welch Allyn ECG system, please contact our knowledgeable sales team. Enhance the accuracy and efficiency of your cardiac diagnostics with this professional-grade cable today.
