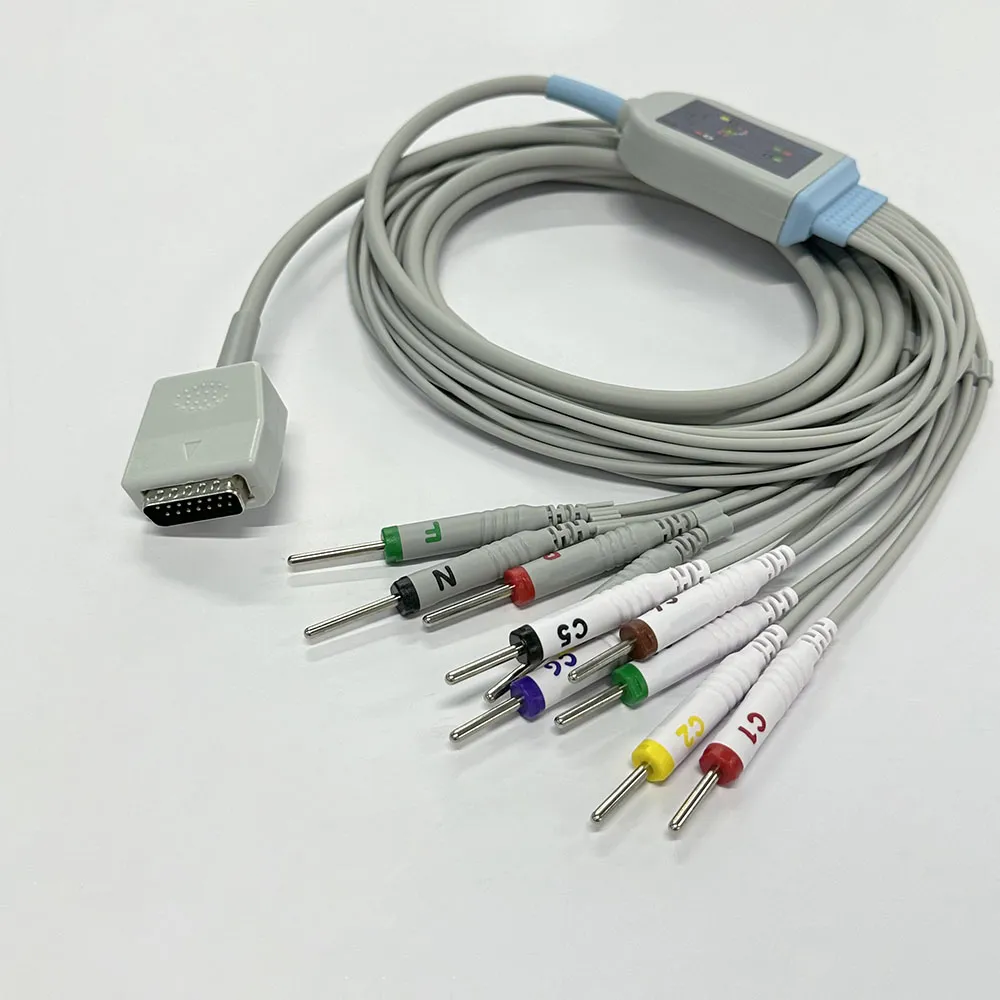

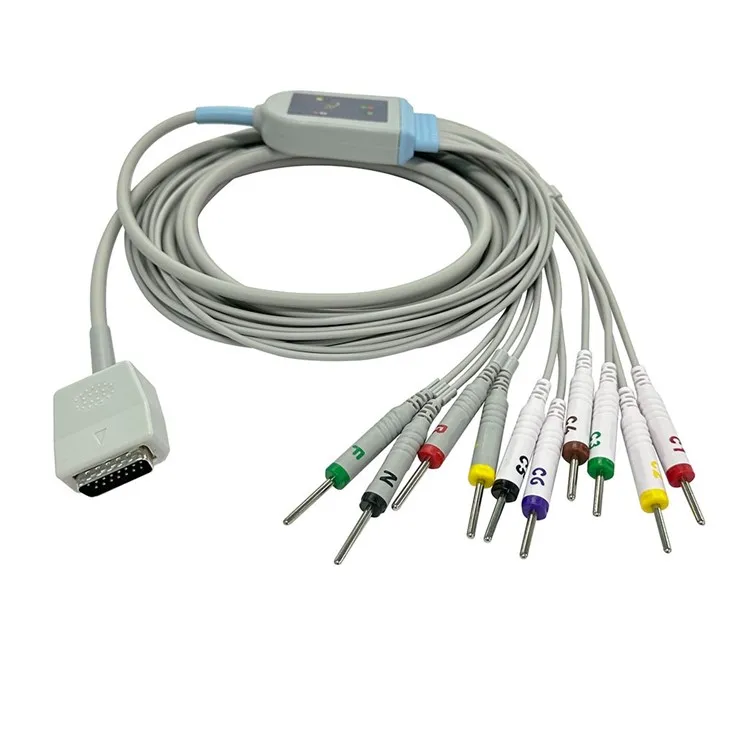

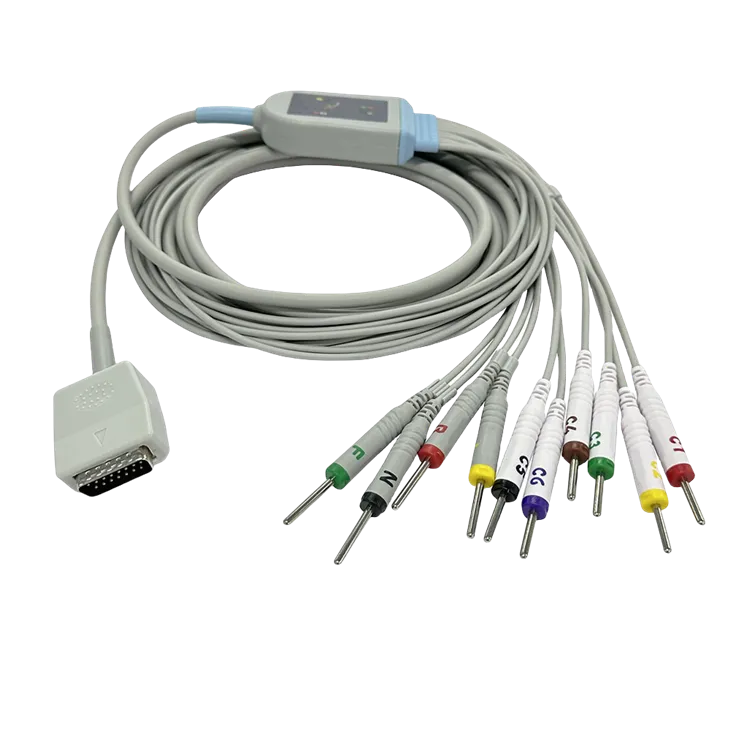

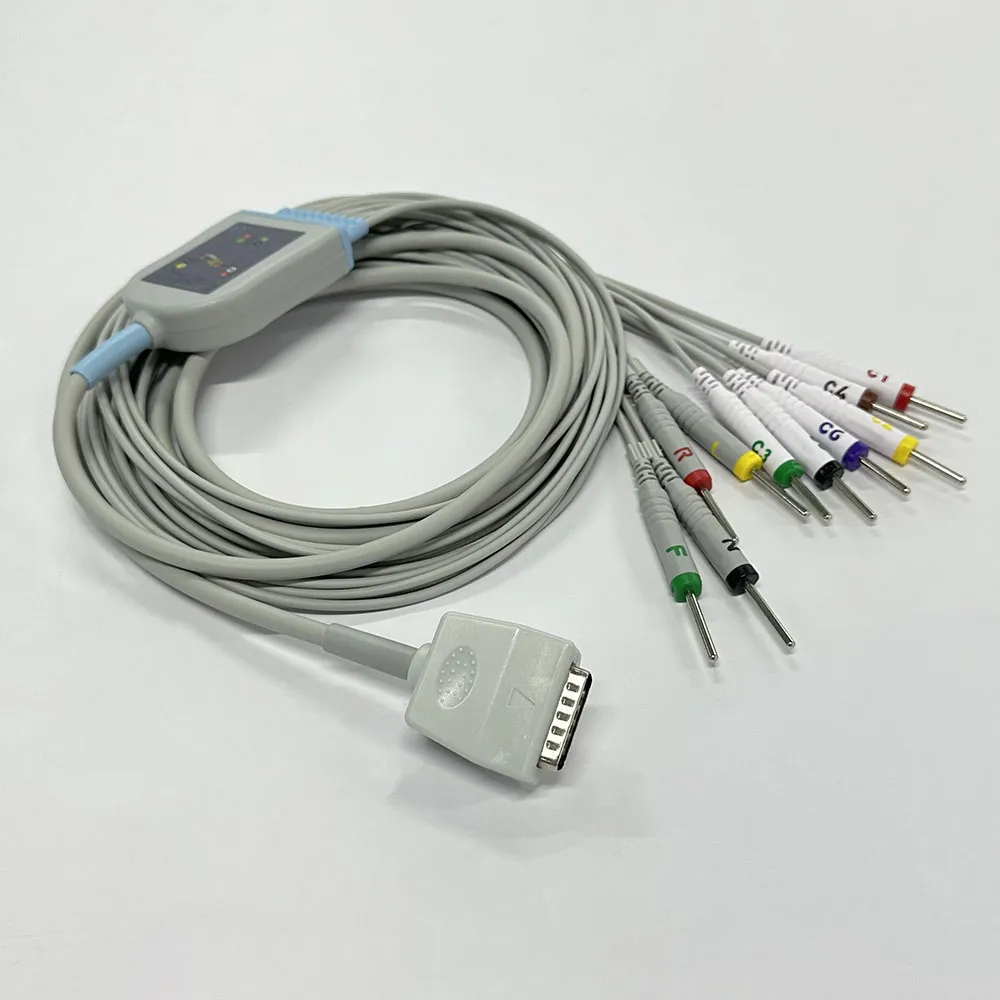

Shanghai Kohden 15-Pin 10-Lead ECG/EKG Cable – High-Quality Compatible Patient Cable

Key Features & Specifications

• Machine End Connector: DB-15 (15-pin) male D-sub connector with locking screws for secure attachment and easy plug-and-play operation.
• Leads: 10-lead configuration with individual electrode wires for full diagnostic ECG acquisition.
• Patient End Options: Available in 4.0mm Banana plugs (most common), Grabber/Pinch clips, Snap buttons, or DIN 3.0 styles to suit different electrode types and clinical workflows.
• Color Coding: AHA (American) or IEC (International) standards for quick and accurate electrode placement.
• Cable Length: Total length approximately 3.0–3.3 meters (9.8–10.8 ft). Limb leads ~1.2 meters, chest leads ~0.75–0.9 meters, offering convenient reach during procedures.
• Material & Construction: Premium medical-grade TPU jacket, latex-free, highly flexible and durable. Double shielding minimizes electromagnetic interference, muscle artifacts, and baseline wander for clear, high-fidelity signals.
• Electrical Performance: Defibrillator-proof design with protection resistors. Excellent conductivity and low noise. Complies with AAMI EC53, IEC 60601-1, and other international safety standards.
• Patient Compatibility: Suitable for adult, pediatric, and various clinical settings.

Wide Compatibility

This cable is specifically designed for Shanghai Kohden models such as ECG-6511, ECG-6151, ECG-8110P/K, ECG-6353, ECG-6403, ECG-6504, and similar series. It also serves as a high-quality compatible replacement for many Nihon Kohden Cardiofax and ECG series machines (e.g., ECG-1150, 1250, 1350, 9010, 9020, 9110, 9130) that use the standard 15-pin interface. Always confirm your exact model for best fit.

Product Benefits

• Superior signal quality with advanced shielding for precise diagnostics and fewer repeat tests.
• Durable, flexible TPU construction withstands frequent use, cleaning, and disinfection in busy medical environments.
• Cost-effective high-performance alternative to OEM cables without sacrificing safety or reliability.
• FDA, CE, ISO 13485 certified, RoHS compliant – meeting global regulatory requirements.
• User-friendly design with clearly marked leads speeds up setup and reduces operator errors.

Applications

Ideal for resting 12-lead diagnostic ECG, routine health screenings, cardiology consultations, emergency evaluations, preoperative assessments, and hospital monitoring. It integrates seamlessly with interpretive ECG systems for automated analysis.

Package Includes: 1 × Shanghai Kohden 15-Pin 10-Lead ECG Cable. Please specify patient end type (Banana/Grabber/Snap) and color standard (AHA/IEC) when ordering.

Warranty: 6–12 months.

This Shanghai Kohden 15-pin 10-lead cable delivers outstanding reliability, compatibility, and value for medical professionals. It is an excellent choice for upgrading or replacing ECG cables in demanding healthcare settings. For bulk orders, custom configurations, or compatibility verification with your specific machine model, contact our sales team today. Enhance your cardiac diagnostic capabilities with this trusted solution.
