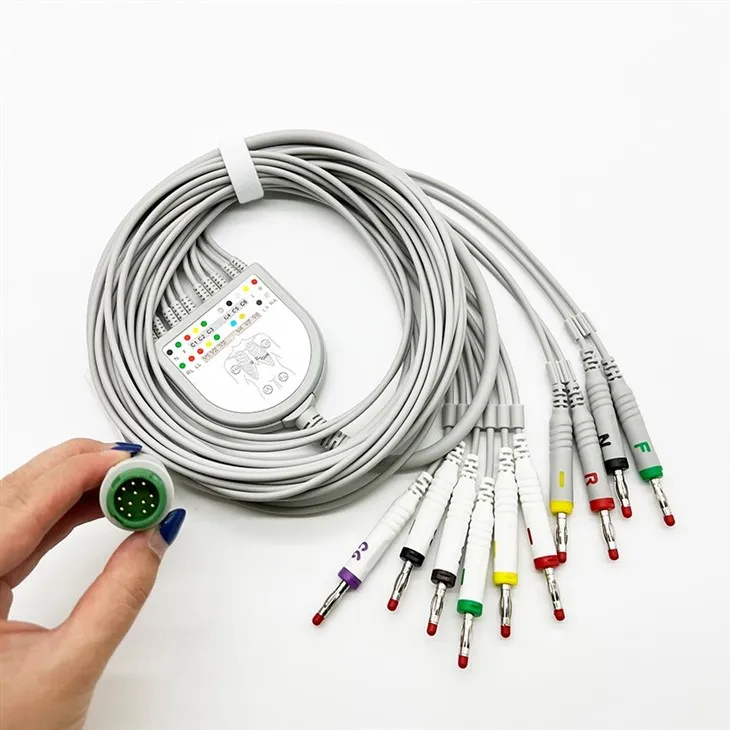

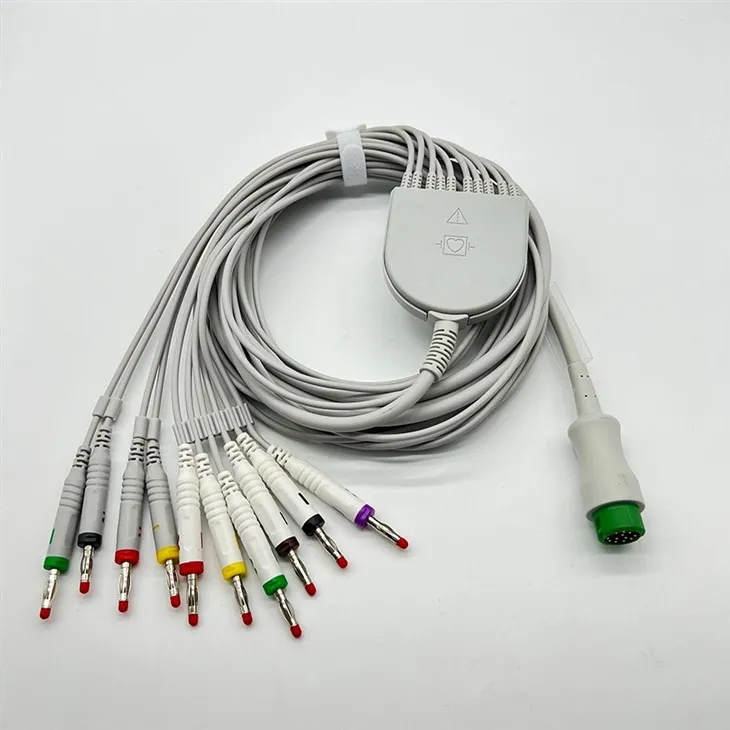

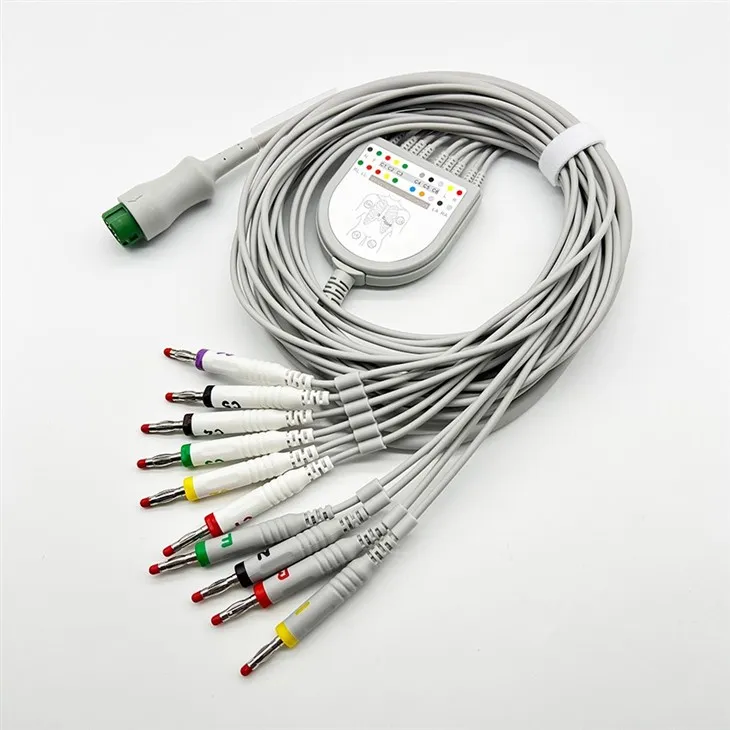

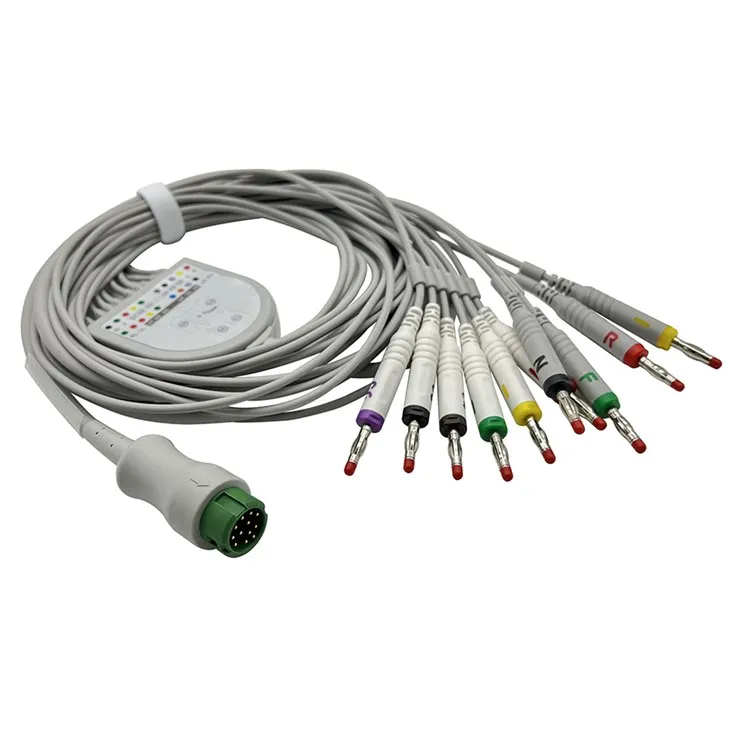

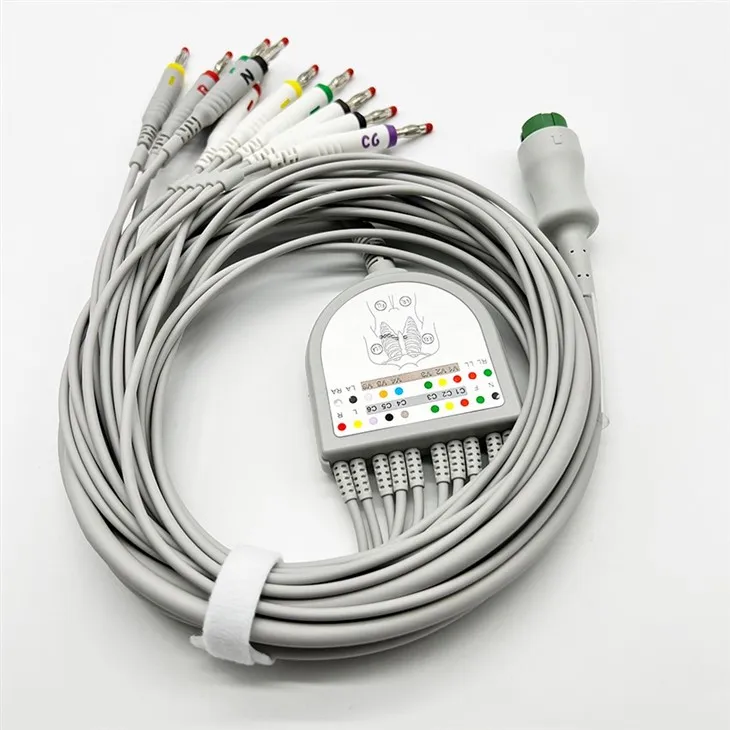

BIOCAR Compatible 12-Pin 10-Lead ECG/EKG Cable

Specifications

• Product Name: BIOCAR Compatible 12-Pin 10-Lead ECG/EKG Cable
• Machine Connector: Round 12-pin female
• Leads: 10 leads (supports full 12-lead ECG)
• Patient End Options: Grabber/Pinch clip, Snap, or Banana 4.0mm
• Cable Length: 3.0–3.5m (approx. 10–11.5 ft) trunk cable
• Jacket Material: High-flex medical-grade TPU
• Color: Gray trunk with AHA or IEC color-coded leadwires
• Shielding: Advanced multi-layer shielding
• Latex: Free
• Compatibility: Biocare iM12 patient monitors, iE series ECG machines, and other 12-pin Biocare 12-channel systems (please verify exact model)
• Standards: IEC 60601-1 (Type CF), AAMI, defibrillation protection

The BIOCAR Compatible 12-Pin 10-Lead ECG/EKG Cable is a premium direct-connect patient cable designed as a high-quality, cost-effective replacement for Biocare electrocardiograph systems. Engineered for precision and durability, this professional-grade cable provides clear, high-fidelity ECG signals essential for accurate cardiac monitoring in hospitals, clinics, diagnostic centers, and stress testing laboratories.

Featuring a secure 12-pin round connector on the machine end, it ensures perfect compatibility with Biocare iM12 series, iE series, and other popular 12-channel models. As a one-piece trunk cable, it eliminates adapters, reduces signal interference, and delivers stable, low-impedance connections for reliable performance in both resting ECGs and dynamic monitoring scenarios.

Superior Design and Construction

Built with premium medical-grade materials, this cable meets the rigorous demands of daily clinical use. The flexible gray TPU jacket resists kinking, abrasion, and repeated exposure to hospital disinfectants. Reinforced leadwires and strain relief at critical junctions ensure long-term mechanical durability, while the lightweight design minimizes tangling and improves handling during busy shifts.

Advanced multi-layer shielding effectively minimizes electromagnetic interference (EMI), motion artifacts, and baseline wander, maintaining signal integrity even when patients are moving.

Exceptional Signal Quality

This 10-lead cable supports complete 12-lead ECG acquisition with crisp, diagnostic-quality waveforms. Low-resistance conductors, optimized limb and precordial lead lengths, and secure electrode interfaces ensure stable skin contact and minimal noise. The 12-pin interface offers dedicated channels for all leads plus shielding and ground references, resulting in excellent channel separation and reduced crosstalk.

Clinicians can rely on accurate tracings for confident detection of arrhythmias, ischemia, conduction abnormalities, and other cardiac conditions.

Safety and Compliance

Patient and equipment safety remain paramount. The cable is 100% latex-free and biocompatible, with built-in defibrillation protection to safeguard both patient and system during emergencies. It complies with international standards including IEC 60601-1 (Type CF applied parts) and AAMI guidelines. The smooth TPU surface allows quick, easy cleaning with standard hospital disinfectants like isopropyl alcohol for fast patient turnover.

Key Benefits for Healthcare Providers

• Excellent Value: Delivers OEM-level performance at a significantly lower cost, helping control equipment expenses.
• High Durability: Withstands thousands of uses, reducing replacement frequency and downtime.
• Efficient Workflow: Color-coded leads and ergonomic design speed up setup and reduce errors.
• Wide Applications: Ideal for resting ECG, exercise stress testing (with compatible systems), patient monitoring, emergency departments, and rehabilitation.

Each cable is individually packaged in a protective medical-grade pouch with usage instructions. We provide 6–12 months warranty against manufacturing defects, along with responsive technical support and competitive bulk pricing for hospitals and distributors.

Why Choose Our BIOCAR Compatible Cable?

Combining precision engineering, robust construction, and outstanding signal performance, this 12-pin 10-lead cable is the smart choice for facilities seeking reliable cardiac diagnostics without high OEM prices. Trusted by clinicians globally, it ensures consistent, high-quality ECG recordings shift after shift, supporting better patient outcomes and smoother clinical operations.

Upgrade your Biocare ECG system today with this dependable, high-performance cable. Contact our sales team for custom configurations, model-specific compatibility confirmation, or volume pricing.

Order now and experience the perfect balance of quality, compatibility, and value for your cardiac monitoring needs.
