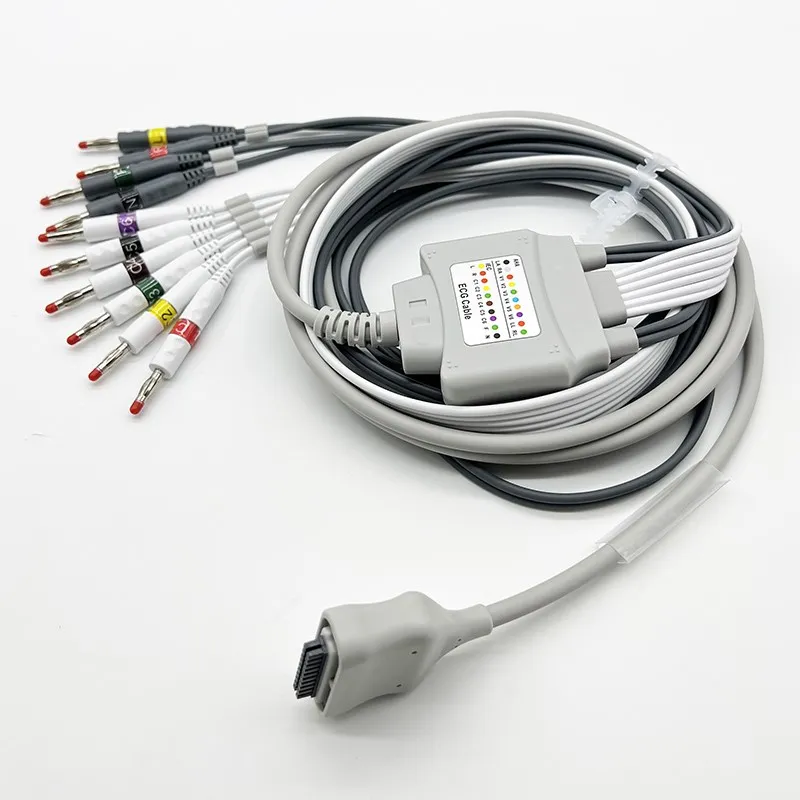

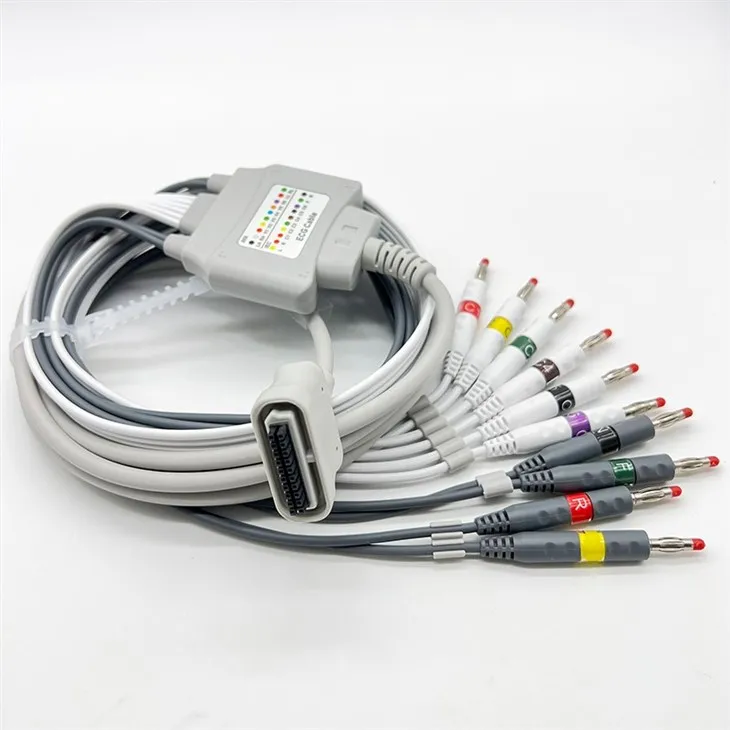

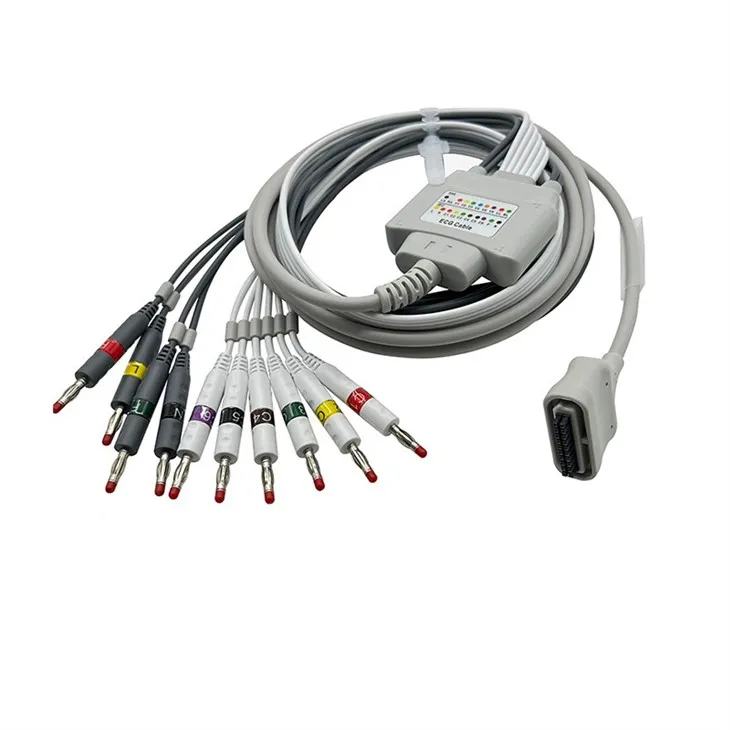

Edan 20-pin 10-Lead ECG/EKG Cable

Specifications

• Product Name: Edan Compatible 20-Pin 10-Lead ECG/EKG Cable
• Machine Connector: Round 20-pin female
• Leads: 10 leads (supports full 12-lead ECG)
• Patient End Options: Grabber/Pinch clip, Snap, or Banana 4.0mm
• Cable Length: 3.0–3.5m (approx. 10–11.5 ft) trunk cable
• Jacket Material: High-flex medical-grade TPU
• Color: Gray trunk with AHA or IEC color-coded leadwires
• Shielding: Advanced multi-layer shielding
• Latex: Free
• Compatibility: Edan ECG machines (SE-1200, SE-1515, SE-18 series, etc.), patient monitors, and other 20-pin compatible Edan models (please verify exact model)
• Standards: IEC 60601-1 (Type CF), AAMI, defibrillation protection

Equipped with a secure 20-pin round connector on the machine end, this one-piece trunk cable ensures perfect compatibility with Edan systems, stable low-impedance connections, and eliminates the need for adapters. It provides consistent, high-performance ECG monitoring for both resting ECGs and dynamic clinical applications.

Superior Design and Construction

Manufactured with premium medical-grade materials, the flexible gray TPU jacket offers excellent resistance to kinking, abrasion, and hospital-grade disinfectants. Reinforced leadwires and robust strain relief at the connector and junctions guarantee long-term durability, while the lightweight design improves handling and reduces tangling during daily use.

Advanced multi-layer shielding effectively minimizes electromagnetic interference (EMI), motion artifacts, and baseline wander, ensuring clean signals even with patient movement.

Exceptional Signal Quality

This 10-lead cable supports full 12-lead ECG acquisition with crisp, diagnostic-quality waveforms. Low-resistance conductors, optimized limb and precordial lead lengths, and secure electrode interfaces maintain stable skin contact and minimal noise. The 20-pin interface delivers excellent channel separation and reduced crosstalk for accurate detection of arrhythmias, ischemia, and other cardiac conditions.

Safety and Compliance

Patient and equipment safety are prioritized. The cable is 100% latex-free and biocompatible, with built-in defibrillation protection. It complies with IEC 60601-1 (Type CF applied parts) and AAMI standards. The smooth TPU surface enables quick cleaning with standard disinfectants like isopropyl alcohol, supporting efficient patient turnover.

Key Benefits for Healthcare Providers

• Excellent Value: OEM-level performance at a significantly lower cost.
• High Durability: Withstands thousands of uses, reducing replacements and downtime.
• Efficient Workflow: Color-coded leads and ergonomic design speed up setup and minimize errors.
• Wide Applications: Ideal for resting ECG, exercise stress testing, patient monitoring, emergency departments, and rehabilitation.

Each cable is individually packaged in a protective medical-grade pouch with usage instructions. We offer a 6–12 months warranty against manufacturing defects, responsive technical support, and competitive bulk pricing for hospitals and distributors.

Why Choose Our Edan Compatible Cable?

This cable combines precision engineering, robust construction, and superior signal performance - making it the smart, reliable choice for Edan 20-pin systems. Clinicians can trust it for consistent, high-quality ECG recordings that support better patient outcomes.

Upgrade your Edan ECG equipment today with this dependable compatible cable. Contact our sales team for custom configurations, compatibility verification, or volume pricing.

Order now and experience the perfect balance of quality, compatibility, and value for your cardiac monitoring needs.
