Nihon Kohden 15-pin 10-Lead ECG/EKG Cable

Nihon Kohden 15-pin 10-Lead ECG/EKG Cable
Nihon Kohden 15-pin 10-Lead ECG/EKG Cable suppliers
Nihon Kohden 15-pin 10-Lead ECG/EKG Cable factory
Nihon Kohden 15-pin 10-Lead ECG/EKG Cable best
Nihon Kohden 15-pin 10-Lead ECG/EKG Cable high quality

Nihon Kohden 15-pin 10-Lead ECG/EKG Cable

Catalog: ECG/EKG Cable

Product Type: ECG/EKG Cable

Compatible Brands：Nihon Kohden

Connector Distal：10-Lead

Mininum Order Quantity: 2 PCS

Certification: CE/ ISO13485

Price: Negotiation

Send Inquiry

Description

If you are looking for nihon kohden 15-pin 10-lead ecg/ekg cable, welcome to contact our factory. As one of the leading manufacturers and suppliers in China, we'll offer you not the cheapest but competitive price and excellent service. Please rest assured to buy our quality products.

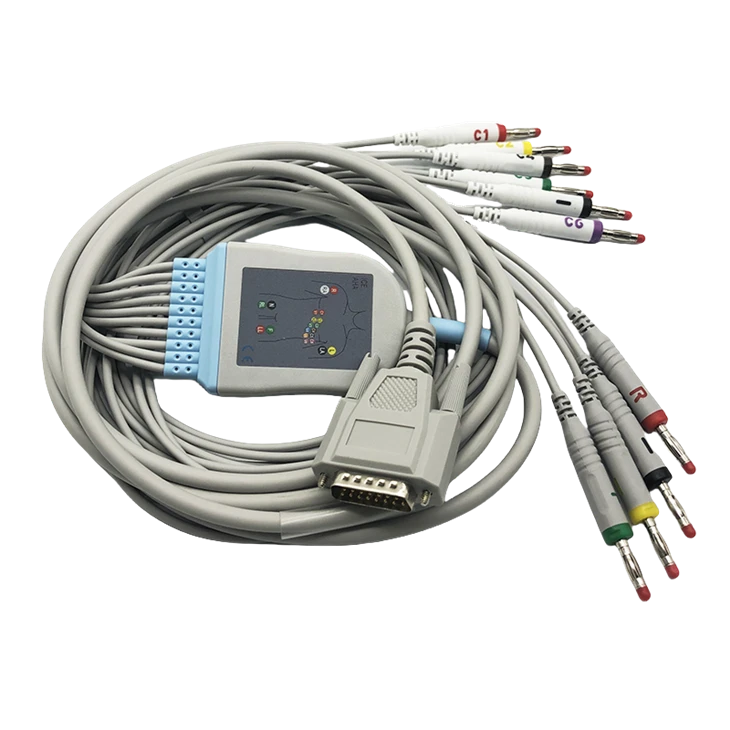

Nihon Kohden 15-Pin 10-Lead ECG/EKG Cable

Nihon Kohden 15-Pin 10-Lead ECG/EKG Cable (also known as patient cable, trunk cable, or direct-connect cable) is a high-quality medical cable used for standard 12-lead electrocardiogram recordings. It features a DB-15 (15-pin) connector on the machine end and connects 10 electrodes (RA, LA, RL, LL, V1–V6) to generate the full 12-lead ECG views (I, II, III, aVR, aVL, aVF, V1–V6).

This is a one-piece / direct-connect design common for Nihon Kohden resting ECG machines (Cardiofax series) and some monitors. It is widely used in hospitals, clinics, and cardiology departments for diagnostic ECGs.

product-700-50

15 2

15 3

15 4

product-700-50

Key Features and Specifications:

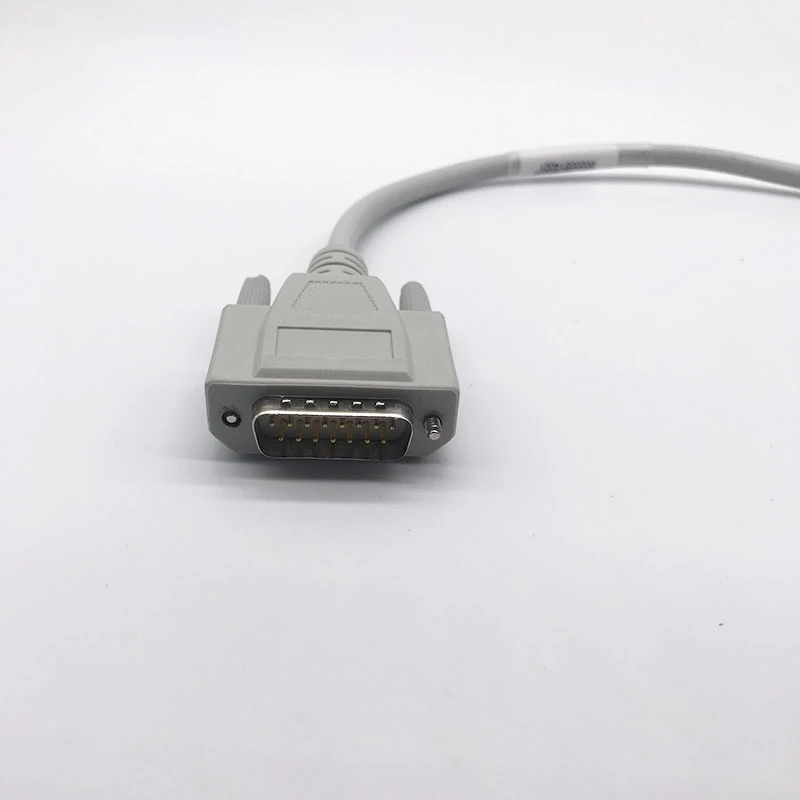

Machine end connector: 15-pin DB-15 male with secure screw lock.
Leads: 10-lead configuration with 10 individual electrode wires.
Patient end options: Banana plugs 4.0mm, Grabber/Pinch/Clip, or Snap button.
Color coding: Available in AHA American standard or IEC International standard.
Cable length: Total approximately 3.0-3.3 meters. Limb leads about 1.2 meters, chest leads about 0.75-0.9 meters.
Material: High-quality medical-grade TPU jacket, latex-free, double shielded for excellent noise reduction and signal clarity.
Electrical performance: Defibrillator-proof design, high fidelity signal transmission, complies with AAMI EC53 and IEC 60601 standards.
Patient compatibility: Suitable for both adult and pediatric use.

Wide Compatibility:

This cable is compatible with Nihon Kohden Cardiofax series including Cardiofax C, M, Q, S, GEM 9020K, and ECG models such as ECG-1150, 1250, 1250A, 1350, 2150, 2250, 2350, 9010, 9020, 9110, 9130 and many more. It also works with select cross-compatible brands.

Product Benefits:

Exceptional signal quality with minimal artifacts for precise diagnosis. Durable and flexible construction withstands frequent clinical use and easy cleaning. Cost-effective high-quality compatible alternative to original OEM parts. FDA, CE, ISO 13485 certified for global markets. Direct plug-and-play replacement with no modifications required.

Applications:

Resting 12-lead diagnostic ECG, hospital cardiology, emergency rooms, outpatient clinics, physical examination centers, and interpretive ECG analysis.

Package includes: 1 x 10-Lead ECG Cable. Please specify AHA or IEC color code and patient end type when ordering.

Warranty: 6-12 months.

This Nihon Kohden 15-pin 10-lead cable offers reliable performance and outstanding value for medical professionals worldwide. Contact us for bulk orders, custom configurations, or model verification.
